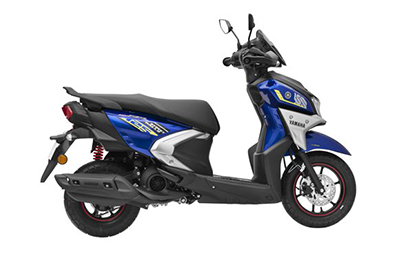

Yamaha Ray ZR Street Rally
INTRODUCTION
The adventurous and thrill-seeking spur in you will not be dampened with the Yamaha Ray ZR Street Rally. The Brush Guard and Block emulate tyres, lustrous mirrors inspired by Yamaha’s flamboyant models, restive colored wheel stripes on the tyres, motorized with 125 cc BS VI Compliant ,air cooled,fuel injected,blue core engine that keeps you exhilarated.16% enhanced mileage, 30% extra power, and the Smart Motor Generator(SMG) that gives an elegant purr to the engine.The tenacious headlights, digital instrument cluster,telescopic suspension , and multi function key switch makes Yamaha Ray ZR Street Rally classy and powerful.
Ratings
- 0%
Performance
- 0%
Features
- 0%
Handling
- 0%
Comfort
- 0%
Build Quality
- 0%
Styling
- 0%
Value for Money
- 0%
Total
KEY SPECIFICATIONS
FUEL SYSTEM
FUEL INJECTION
REAR SUSPENSION
UNIT SWING
SPECIAL FEATURES
11
UNIFIED BRAKING SYSTEM
12
MULTI FUNCTION KEY SWITCH
Full Specifications
| City |
50-54km/l |
| Highway |
55-61km/l |
| Tyres (F) |
90/90-12 (Tubeless) |
| Tyres (R) |
110/90-10 (Tubeless) |
| Brakes (F) |
Disc 190mm |
| Brakes (R) |
Drum 130mm |
n
| Wheelbase |
1,280mm |
| Ground Clearance |
145mm |
| Length x Width x Height |
1,880 x 685 x 1,190mm |
| Kerb Weight |
99kg |
| Fuel Capacity |
5.2l |
| Seat Height |
785mm |
| Engine Type |
Air cooled, 4-stroke, SOHC, 2-valve |
| Displacement |
125cc |
| Power |
8.2PS @ 6,500rpm |
| Torque |
9.7Nm @ 5,000rpm |
| Bore x Stroke |
52.4mm x 57.9mm |
| Compression Ratio |
10.2:1 |
| Fuel Supply |
Fuel Injection |
| Transmission Type |
V Belt Automatic |
| Speedometer |
Digital |
| Tachometer |
No |
| Tripmeter |
Yes |
| Fuel Guage |
Yes |
| Low Fuel Indicator |
Yes |
| Low Battery Indicator |
No |
| Low Oil Indicator |
No |
| Start Type |
Electric/ Kick |
| Kill Switch |
No |
| Clock |
No |
| Pass Light |
Yes |
| ABS |
No |
| Stand Alarm |
No |
| Type |
Diamond Type |
| Front Suspension |
Telescopic Fork |
| Rear Suspension |
Unit Swing |
| Start Type |
Electric Starter & Kick Starter |
| Battery |
Maintenance Free - 12V,5.0 Ah |
| Head Light |
12V,35/35W x 1 |
| Brake/ Tail Light |
12V,21/5W x 1 |
| Ignition System |
TCI (Transistor Controlled Ignition) |
