Harley Davidson Fat Bob

INTRODUCTION

Harley Davidson Fat Bob is a cruiser bike known for its comfort and stylish look. Fat Bob is built-up with muscular style and performance. The positioning of all the equipment makes Fat Bob more attractive. The Fat Bob is equipped with Race style fork technology, LED lighting, cast wheels with fat tyres, 2-1-2 upswept exhaust, powerful Milwaukee-Eight big twin-engine, and dual-disc front brakes.

GALLERY

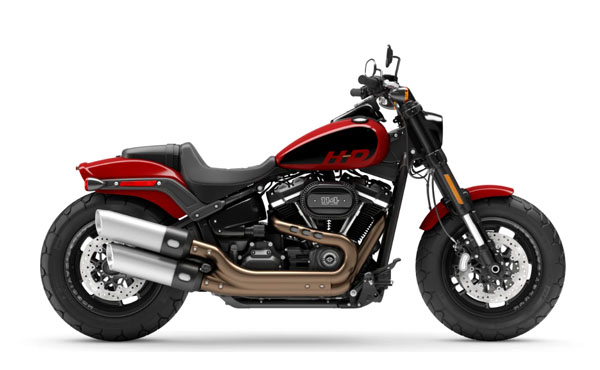

  • RIGHT PROFILE

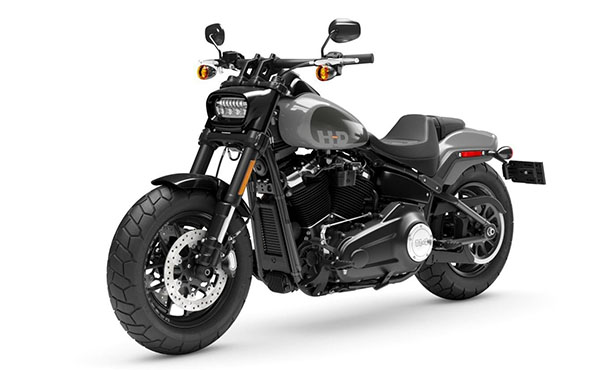

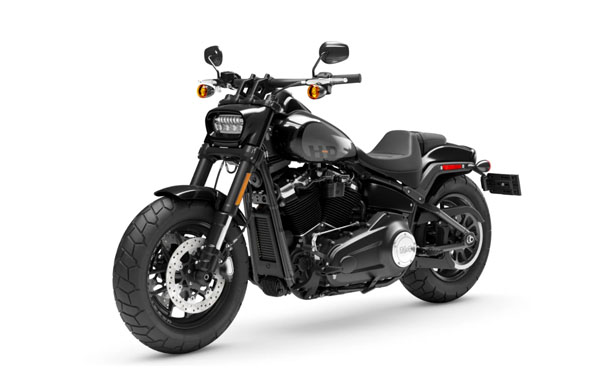

  • LEFT ANGLED PROFILE

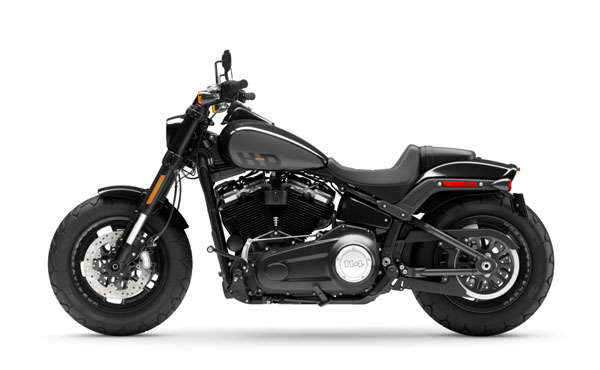

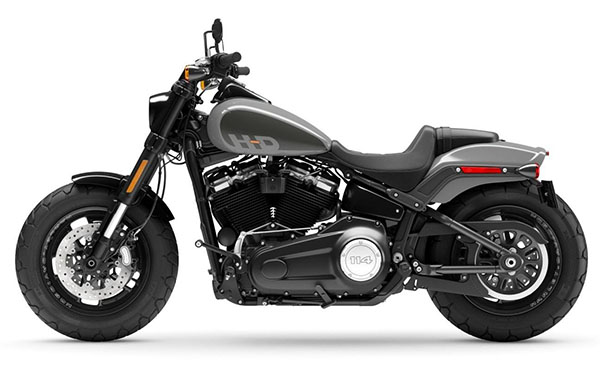

  • LEFT PROFILE

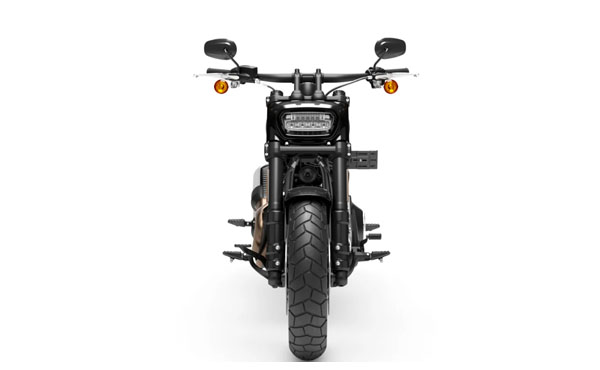

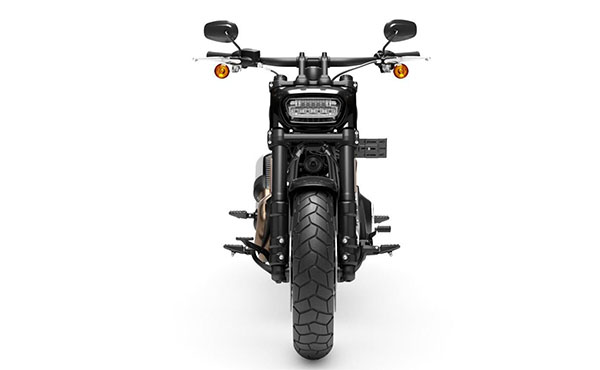

  • FRONT PROFILE

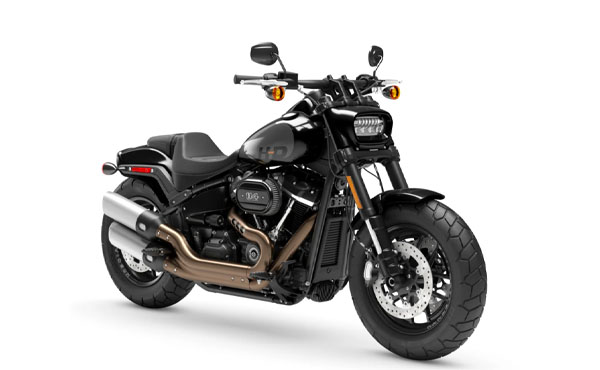

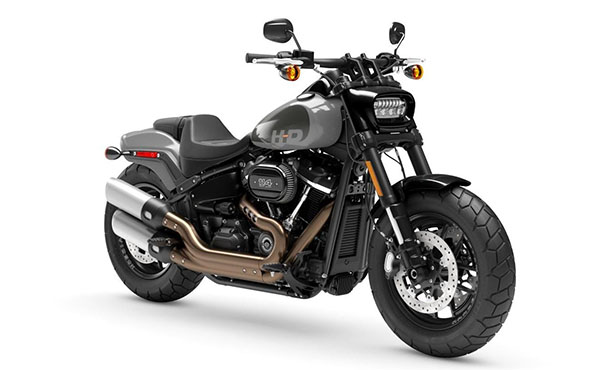

  • RIGHT ANGLED PROFILE

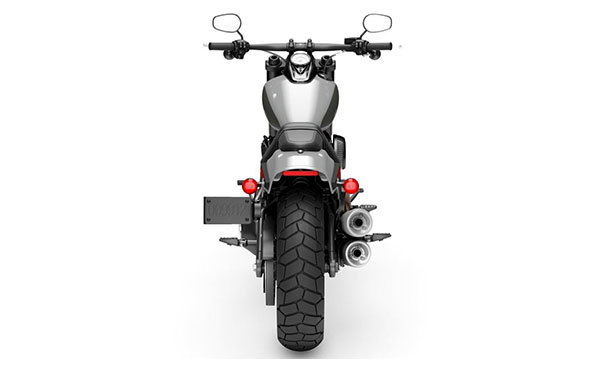

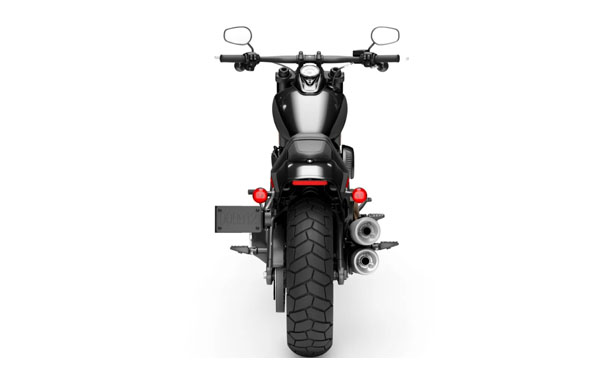

  • REAR PROFILE

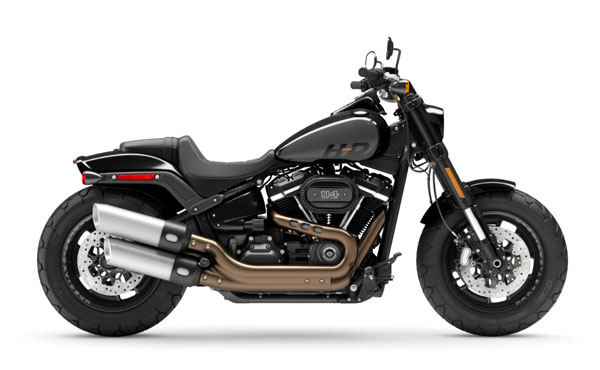

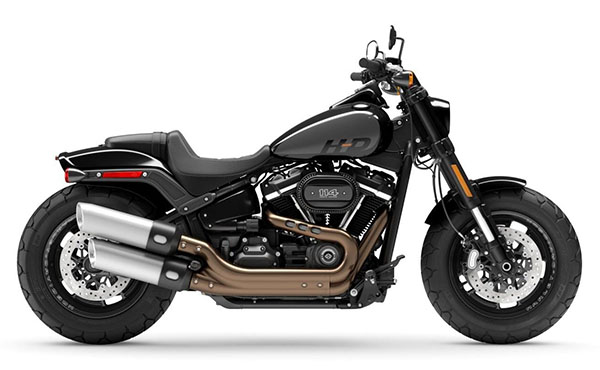

  • VIVID BLACK
  • WHITE SAND PEARL

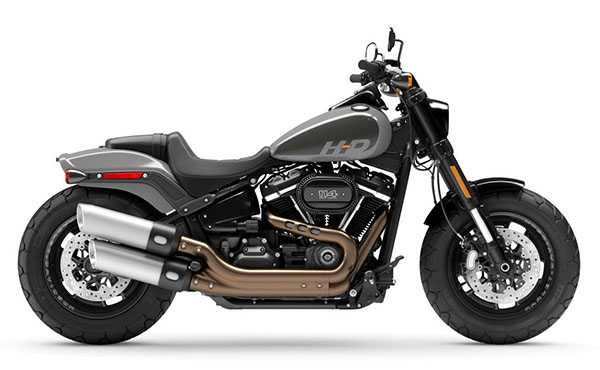

  • GUNSHIP GRAY

KEY SPECIFICATIONS

DISPLACEMENT

1,868cc

MILEAGE

16-18km/l

POWER

93PS @ 5,020rpm

TORQUE

155Nm @ 3,500rpm

FUEL SYSTEM

Electronic Fuel Injection

TANK CAPACITY

13.2 liters

CHASSIS

Cast Aluminium

KERB WEIGHT

306Kg

Ratings

  • 0%

    Performance

  • 0%

    Features

  • 0%

    Handling

  • 0%

    Comfort

  • 0%

    Build Quality

  • 0%

    Styling

  • 0%

    Value for Money

  • 0%

    Total

Price

SPECIAL FEATURES

1
MILWAUKEE-EIGHT BIG TWIN ENGINE
2
DUAL DISC FRONT BRAKES
3
2-1-2 EXHAUST
4
CAST WHEELS WITH FAT TYRES
5
LED LIGHTING
6
RACE-STYLE FORK TECHNOLOGY
7
FORWARD FOOT CONTROLS
8
RELAXED RIDING POSITION
9
ALUMINIUM WHEELS
10
MANTIS WHEELS
11
ESPFI
12
MUSCULAR STYLING

Full Specifications

City 15-17km/l
Highway 17-20km/l
Engine Type Milwaukee-Eight 114
Displacement 1868cc
Power 93PS @ 5,020
Torque 155Nm @ 3,500rpm
Bore x Stroke 102mm x 114.3mm
Compression Ratio 10.5:1
Fuel Supply Electronic Sequential Port
Speedometer Digital
Tachometer Yes
Tripmeter Yes
Fuel Guage Yes
Low Fuel Indicator Yes
Low Battery Indicator Yes
Low Oil Indicator Yes
Start Type Electric
Kill Switch Yes
Clock Yes
Pass Light Yes
ABS Yes
Stand Alarm No
Tyres (F) Denim black, Structure cast aluminum with laser etched graphics
Tyres (R) Denim black, Structure cast aluminum with laser etched graphics
Brakes (F) 4-piston fixed
Brakes (R) 2-piston floating
Front Suspension Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Rear Suspension Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
Wheelbase 1615mm
Ground Clearance 120mm
Length 2340mm
Kerb Weight 306kg
Seat Height 710mm
Fuel Capacity 13.2l
Lights All LED, low beam, high beam and signature position lamp headlamp; Incandescent bullets Tail/Stop, front and rear signal lights
Gauges 4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

HARLEY DAVIDSON FAT BOB Videos

HARLEY DAVIDSON FAT BOB OVERVIEW

The Harley Davidson Fat Bob gets a 1868 cc, V-twin, Milwaukee-Eight 114 engine. Links with a six-speed gearbox transmission, the motor gives high torque of 155Nm at 3500rpm. The engine provides smooth running with a crisp throttle response. Fat Bob comes up with an anti-locking brake system on both front and rear discs. These high-performance dual disc brakes help you monitor that power when you need it.

The aluminium wheels are fat and aggressive tyres that give you asphalt-eating traction. It has got a 2-into-1-into-2 short dual exhaust system. The exhaust pipes get a bronze finish, while the exhaust canisters with a silver-tone. The length of this motorcycle is about 2340mm and has a ground clearance of 120mm. This motorcycle weighs about 306 kilograms which is 3 kilograms less than previous models with 13.6 litres of fuel capacity.

The mechanical specifications have undergone a crucial upgrade while the styling remains the same as the previous one. It features an all-LED rectangular headlamp at the front, a flat handlebar, a semi-digital instrument cluster at the centre, split-style seats, twin exhaust canisters, and fat tyres. The hardware includes upside-down front forks up-front and a rear mono-shock that performs suspensions tasks.

The braking duties are handled by the dual discs at the front and the single rotor at the rear. It is available in one variant and three colours- Vivid Black, Deadwood Green, and Billiard Red.

HARLEY DAVIDSON FAT BOB VERDICT

PROS

  • Massive torque
  • Offers comfortable riding position

CONS

  • Weight is on the heavier side
  • Difficult to ride in the city
