Hero MotoCorp i3S Technology: How It Works, Pros & Cons

Long story short: Hero MotoCorp i3S (Idle Stop-Start System) turns off the engine when your bike is stopped and restarts it as soon as you pull the clutch. This helps save fuel in city traffic. Here’s how it works, which models have it, and its real-world pros and cons.

Hero MotoCorp i3S (Idle Stop-Start System) is designed to improve fuel efficiency and lower emissions for daily riders. With city traffic growing and fuel prices rising, many riders are looking for smarter ways to save on their motorcycles.

The i3S system shuts off the engine when you’re stopped and restarts it right away when you’re ready to go, making rides smoother and saving fuel. This guide explains how Hero’s i3S works, clears up common myths, and answers your questions about its real-world benefits.

Key Takeaways

1. i3S stands for Idle Stop-Start System. It automatically shuts off the engine when the motorcycle is stationary in gear, and restarts it the moment the clutch is pulled in (or the throttle is twisted, on scooter implementations).
2. i3S is not a hybrid system. There’s no electric power-assist motor, no regenerative braking, and no extra torque or acceleration. Its only purpose is to stop fuel waste while idling.
3. The system uses a fast-response starter motor and ECU logic to monitor RPM, speed, and clutch or gear status. It does not use a hybrid generator, which keeps things simple, light, and affordable.

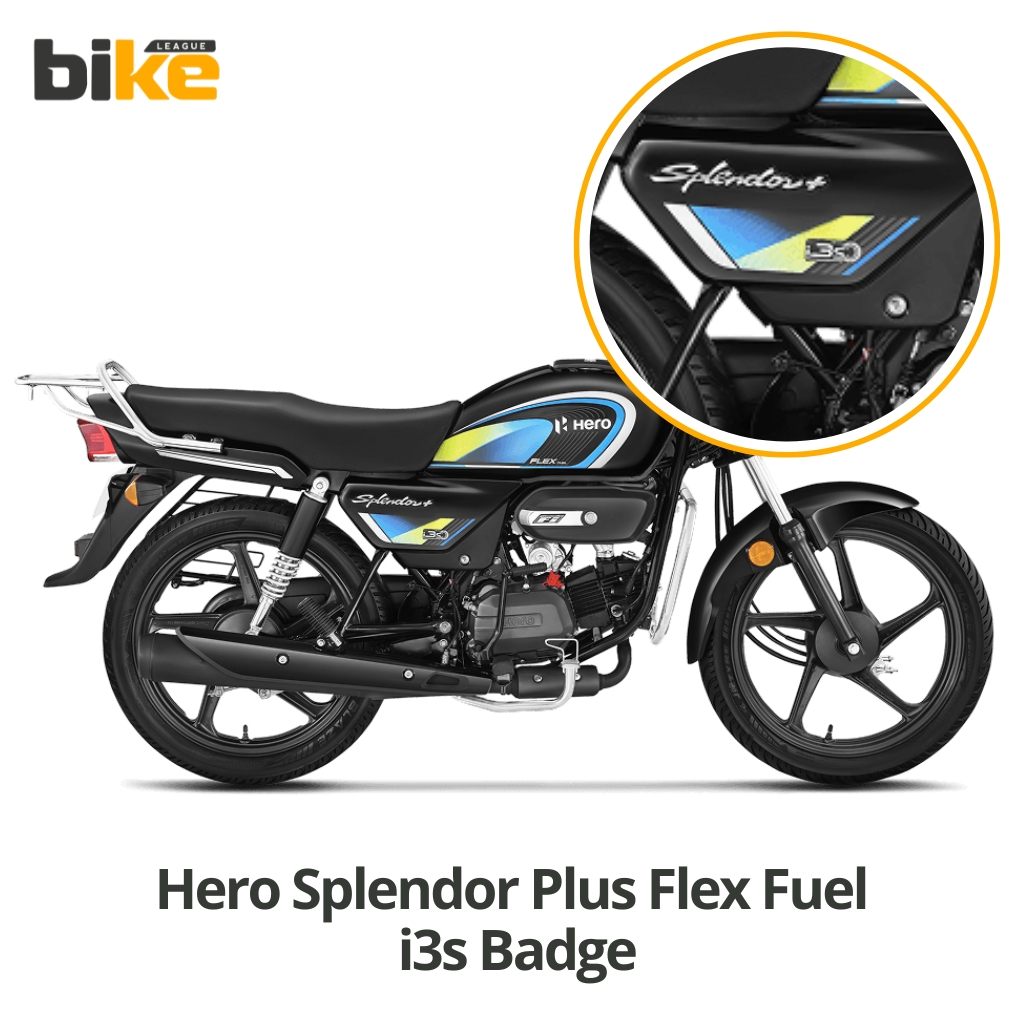

4. i3S is available on many Hero commuter bikes, such as the Splendor iSmart, Splendor Plus i3S, HF Deluxe i3S, Passion Pro i3S, and Glamour i3S. This makes it one of the most accessible fuel-saving features in India.
5. Since there’s no hybrid battery or generator, maintenance and running costs are the same as non-i3S models, with no extra service needed.

What Is Hero’s I3s Technology?

i3S is Hero MotoCorp’s idle stop-start system, first launched on the Splendor iSmart. The main idea is simple: when your engine idles at a red light or in traffic, it uses fuel without moving you forward. i3S stops this waste by turning off the engine automatically during stops.

This is very different from a hybrid system. There’s no extra electric motor, no regenerative braking, and no battery for power assist. i3S uses a quick starter motor, sensors, and ECU programming to detect when the bike is stopped, in neutral, or the clutch is disengaged and idling.

Key Features Of Hero Motocorp I3s System

1. Automatic Engine Shut-Off at Idle: When the motorcycle comes to a stop and the engine has been idling for a few seconds, i3S cuts the ignition and fuel supply, switching the engine off completely.
2. Instant Restart on Clutch Input: Pulling in the clutch (or in some scooter-based implementations, twisting the throttle) immediately triggers the starter motor to restart the engine, ready to move within a fraction of a second.
3. Quick-Response Starter Motor: Hero engineered a higher-torque, faster-cranking starter motor specifically for i3S models so that restarts feel near-instantaneous rather than the slower crank of a conventional kick or electric start.
4. No Additional Battery or Generator Hardware: Since i3S doesn’t perform any power-assist or energy-recovery function, it doesn’t require the extra battery pack, SMG unit, or wiring.
5. Simple Indicator Light: Most i3S models display a small indicator on the instrument cluster showing when the system has switched the engine off, so riders know the bike hasn’t stalled.
6. Works With Standard Engine Architecture: i3S has been applied across multiple engine displacements (97cc, 100cc, 110cc, 113cc, 125cc) without requiring a fundamentally different engine design.

Pros Of Hero’s I3s Technology

1. Real Fuel Savings in City Traffic: By eliminating idle-time fuel consumption at every signal and traffic jam, i3S delivers tangible mileage improvements for the kind of stop-go riding most Indian commuters face daily.
2. No Extra Cost Burden of Hybrid Hardware: Since i3S doesn’t use a generator, motor unit, or hybrid battery, Hero can offer it on very affordable commuter bikes, even entry-level models like the HF Deluxe, without a big price increase.
3. Simple, Proven, Low-Maintenance System: With no additional battery pack or complex electronics beyond the starter and ECU logic, there’s nothing extra to service or replace. i3S models follow the same maintenance schedule as standard variants.
4. Quick, Reliable Restarts: The upgraded starter motor in i3S models makes restarts much faster than a standard electric start. This helps reduce the “lag” that some riders worry about with stop-start systems.
5. Wide Availability Across the Lineup: i3S isn’t just for premium models. It’s available on India’s best-selling commuter motorcycles, making fuel-saving technology accessible to many riders.
6. Works Well With Alternative Fuels: Hero has paired i3S with its new flex-fuel (E85) commuters, showing the system integrates smoothly with newer engine and fuel technologies.

Cons Of Hero’s I3s Technology

1. No Performance or Power-Assist Benefit: i3S offers zero power boost, torque assist, or acceleration improvement. Its entire contribution is limited to fuel savings during idling.
2. No Regenerative Charging: i3S doesn’t recover energy during braking or deceleration. The battery is charged conventionally by the alternator, just like on any non-i3S motorcycle.
3. Restart Frequency in Heavy Traffic: In extremely stop-start traffic, the engine may cycle on and off very frequently, which some riders find repetitive, even if the restart itself is quick.
4. Mileage Gains Vary by Riding Style: The fuel savings depend heavily on how much time a rider actually spends stationary. Highway-heavy riders will see far less benefit than someone doing short city commutes with frequent stops.
5. Battery Load Over Time: Frequent engine restarts place repeated demand on the battery and starter motor. While Hero has engineered these components for this duty cycle, very old or poorly maintained batteries may struggle with the extra cycling.
6. No “Assist” Feedback for Riders: Since there’s no power-assist function, riders don’t get any noticeable change in how the bike rides — the only feedback is the indicator light when the engine shuts off.

How Does Hero Motocorp I3s Work?

The Foundation: Idle Detection And Ecu Logic

The system continuously monitors engine RPM, vehicle speed, and gear/clutch status through sensors connected to the ECU. When the ECU detects that the motorcycle has stopped moving and the engine is idling — typically for around 5 seconds — it cuts off the fuel injection and ignition, stopping the engine.

The moment the rider signals an intention to move (usually by pulling the clutch lever on geared bikes, or sometimes detected through throttle input on scooters), the ECU immediately commands the starter motor to restart the engine, which fires up almost instantly.

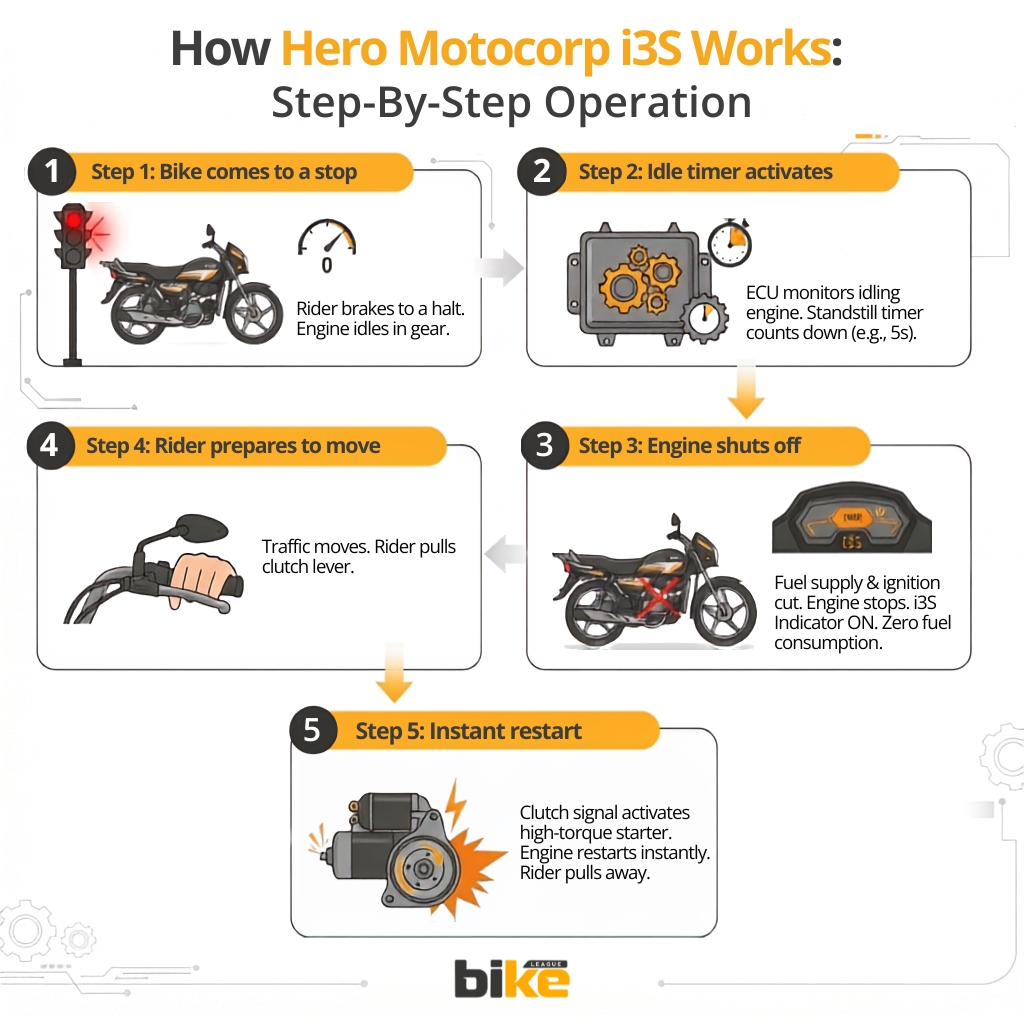

Step-by-step Operation

1. Step 1: Bike Comes to a Stop The rider brakes to a halt at a signal or in traffic, with the engine still running at idle and the transmission in gear.
2. Step 2: Idle Timer Activates The ECU monitors the idling engine. If the bike remains stationary for a few seconds (with the clutch released and gear engaged on most implementations), the idle-stop timer counts down.
3. Step 3: Engine Shuts Off Once the timer elapses, i3S cuts fuel supply and ignition, and the engine switches off completely. The i3S indicator lights up on the dashboard. The bike sits silently, consuming zero fuel.
4. Step 4: Rider Prepares to Move As traffic starts moving, the rider pulls in the clutch lever (geared models) to engage first gear or prepare to pull away.
5. Step 5: Instant Restart The clutch input signals the ECU, which activates the high-torque starter motor. The engine restarts almost instantly — typically faster than a standard electric start — allowing the rider to pull away without noticeable delay.

Which Hero Models Have I3s Technology?

i3S has been rolled out broadly across Hero’s commuter portfolio over the years. Notable models include:

The range of Hero’s new bikes continues this legacy with i3S (Idle Stop-Start) technology, ensuring that every Hero launch helps riders save significantly on daily fuel costs. Hero has also extended the technology to its newer E85-compatible flex-fuel commuters, where the patented i3S idle stop-start technology automatically cuts the engine during brief traffic stops to maximise fuel savings.

Wjhat Are The Performance And Maintenance Aspects Of Hero I3s Technology?

Performance

i3S does not affect a motorcycle’s power, torque, or top speed — these stay the same as non-i3S versions of the same model. The main benefit is fuel efficiency. In city riding with lots of stops, i3S models usually get better mileage than non-i3S bikes, since the engine isn’t burning fuel while idling at signals. On highways with fewer stops, the mileage gap narrows, since the system has little chance to activate.

Maintenance

i3S models follow the same service intervals and routine maintenance as standard Hero motorcycles. The upgraded starter motor is built to handle frequent restarts, and servicing is available at Hero’s large network of authorised service centres — one of the biggest in India.

Myths And Misconceptions About Hero’s I3s Technology

1. Myth: I3s Harms The Engine Due To Frequent Shut-offs.

Reality: The system is designed for durability, and frequent engine stops at idle do not negatively impact engine life when used as intended.

2. Myth: I3s Drains The Battery Quickly Because Of Repeated Restarts.

Reality: i3S technology uses an optimised starter and is calibrated to prevent excessive battery drain under normal conditions.

3. Myth: Only New Or Premium Bikes Have I3s.

Reality: i3S is available in several affordable Hero models, not just high-end or new motorcycles.

4. Myth: The System Is Complicated And Hard To Repair.

Reality: i3S is a relatively simple addition to the bike’s electronics and does not significantly complicate repairs or maintenance.

5. Myth: I3s Can Be Dangerous In Traffic If The Engine Fails To Restart.

Reality: The system is engineered for reliability, and as long as the battery is healthy, restarts are instant and dependable.

6. Myth: Using I3s Voids The Bike’s Warranty.

Reality: i3S is a manufacturer-installed feature and does not affect the standard warranty when used correctly.

7. Myth: I3s Is Basically The Same As A Hybrid System.

Reality: No — i3S only stops and restarts the engine at idle. It has no electric motor, no power assist, and no regenerative braking, unlike true hybrid systems.

Frequently Asked Questions About Hero’s I3s Technology

1. What Does Hero Motocorp I3s Stand For?

i3S stands for Idle Stop-Start System, a feature that helps save fuel by automatically shutting off the engine when stationary and restarting it when needed.

2. How Does The I3s System Work On Hero Bikes?

The i3S system monitors the bike’s status and turns off the engine when the bike is idle. It instantly restarts the engine when the clutch is pulled in (or the throttle is twisted on some scooters).

3. Which Hero Models Are Equipped With I3s Technology?

Models include the Splendor iSmart, Splendor Plus i3S, HF Deluxe i3S, Passion Pro i3S, Glamour i3S, and some flex-fuel variants.

4. Is There Any Extra Maintenance Required For I3s Bikes?

No, i3S models follow the same maintenance schedule as standard bikes, with no additional service requirements.

5. Can I Turn Off The I3s System If I Don’t Want To Use It?

On most models, i3S operates automatically and does not have a dedicated permanent off switch.

6. Does I3s Work At All Speeds And In All Traffic Conditions?

i3S is most effective in stop-and-go city traffic with frequent stops. On highways, its benefit is minimal since the engine rarely idles.

7. Does I3s Add High Cost To The Motorcycle?

No, since i3S mainly involves ECU logic and a specialised starter motor, the price difference from non-i3S models is minimal.

Glossary Of Technical Terms Used In This Article

1. i3S (Idle Stop-Start System): Hero MotoCorp’s proprietary technology that automatically shuts off the engine when the motorcycle is stationary, and restarts it when needed, to save fuel and reduce emissions.
2. ECU (Engine Control Unit): The electronic system that manages engine functions, including monitoring sensors and controlling the i3S system.
3. Starter Motor: An electric motor responsible for cranking the engine during startup, specially upgraded in i3S models for quick restarts.
4. Idle: The state when the engine is running, but the motorcycle is not moving.
5. Clutch: A mechanical device operated by a lever, used to engage or disengage the engine from the transmission, allowing for gear changes and starting/stopping.
6. Fuel Injection: A system that delivers fuel directly to the engine using electronic controls, often managed by the ECU.
7. Regenerative Braking: A feature in hybrid/electric vehicles that recovers kinetic energy during braking and converts it to electrical energy for storage. Not present in i3S systems.
8. Flex-Fuel: Engines designed to run on more than one type of fuel, such as E85 (85% ethanol), compatible with i3S in some Hero models.
9. Hybrid System: A drivetrain that combines an internal combustion engine with an electric motor for power assist and energy recovery—different from i3S technology.

Sources

1. How the i3S Technology in HF Deluxe Helps Maximise Fuel Efficiency in City Traffic
2. Exploring the Destini Prime’s i3S Technology: What Makes it a Mileage Champion?
3. Maximise Every Drop: How i3S and xSENS FI Make the Splendor Plus a True Mileage King

Other Related Links From Bikeleague India

1. Why do Fi bikes rev high on cold start
2. Push start vs Jump start in Fi motorcycle: What works
3. Hero Motocorp
4. Hero Xoom 160
5. Hero Passion XTEC

Conclusion

Hero’s i3S technology is a big step toward making daily commuting more efficient, affordable, and eco-friendly. By managing engine idling, i3S helps riders save fuel, cut emissions, and enjoy a smoother ride in city traffic.

Since i3S is available on many Hero models and is built for reliability, it’s a practical choice for today’s city riders. As motorcycles improve, features like i3S show how simple technology can help both your budget and the environment.
